This validation case is the result of the study of a working group of COFREND (French Confederation for Non-Destructive Testing). This group "modeling of Eddy currents" aims at proposing benchmarks gathering simulations and experiments results allowing the validation of Eddy currents simulation codes.
The specificity of this benchmark lies on through flaws.
The inspected specimen is a plate of 1.55 mm thickness, in inconel, conductivity of 1.02 MS.m-1 and relative permeability of 1.
Plate modeled in CIVA
The probe is made out of a cylindrical coil at double function which geometrical properties are gathered on the figure below that shows the panel in CIVA allowing the definition of those properties. The acquisition is done on two channels at 100 kHz and 300 kHz, with 1 mA in injection and reception in absolute mode.
Geometrical properties of the probe

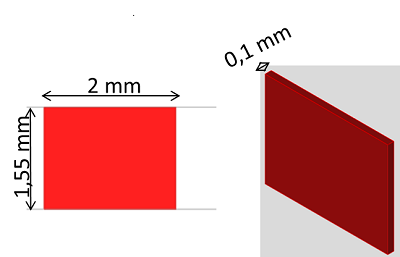

The defect present in the piece to inspect is a parallelepiped notch trhough the whole specimen thickness (figure below).
The experimental measurements have been realized with an impedancemeter, it has also not been necessary to calibrate the results before the comparison.

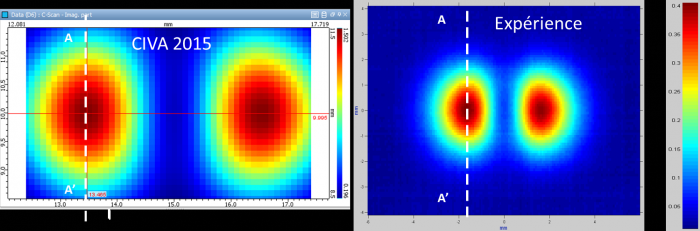

C-scans of imaginary parts obained with CIVA 2015 and the experiment are represented on figure below.
Simulation and experiment C-scans

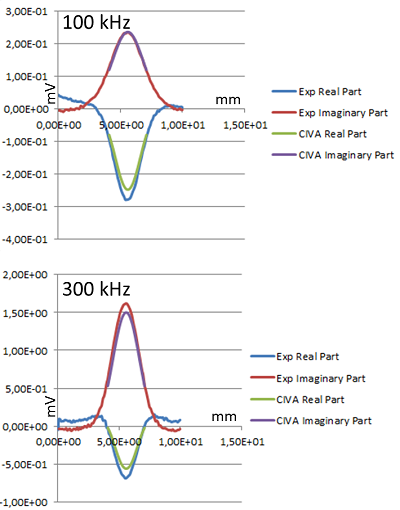

Real and imaginary parts after the AA' cut drawn on C-scans above as a function of scanning for 100 kHz and 300 kHz frequencies are compared on figure below. A good agreement is observed between experiments and simulations.
Comparison between experiment and simulation with CIVA 2015 for channels at 100 kHz and 300 kHz.
COMPARISON between CODES
CIVA simulation results were also compared with the results of two finite element codes: C3D, developed by LAMEL (joint laboratory between EDF R & D and the University of Lille) and Flux 3D
, developed by Altair. The amplitude and phase differences are given in relation to the experimental results.
Comparisons between CIVA, C3D and Flux for channels at 100 and 300 kHz
The agreement is satisfactory between the 3 codes and the experiment with a difference less than 10% for all the cases.
These results were presented in the article "Developing and using benchmarks for eddy current simulation codes validation to address industrial issues" at QNDE in 2010.
