Structural Health Monitoring with CIVA

CIVA SHM provides the possibility to simulate Structural Health Monitoring by ultrasonic Guided Waves.

It includes:

  • SHM Simulation module
  • Mode Computation module

This module is also compatible with the following CIVA features: Parametric Study, Metamodels, POD Study and CIVA Script.

Since Structural Health Monitoring sensors are embedded in the monitored structure, it is even more important than in traditional NDE to design and qualify them carefully before implementation. Simulation tools enable to reduce the number of necessary mock-ups and physical tests to lower costs of design and qualification stages.

With simulation, you will be able to:

  • Support the design of the monitoring strategy (i.e. sensors distribution and number depending on the geometry of the structure studied)
  • Support performance demonstrations and technical justifications (parametric studies and sensitivity analyses)
  • Provide datasets for POD study
  • Provide insights and data to better understand / master the technic and how to process SHM signals



Simulation Examples

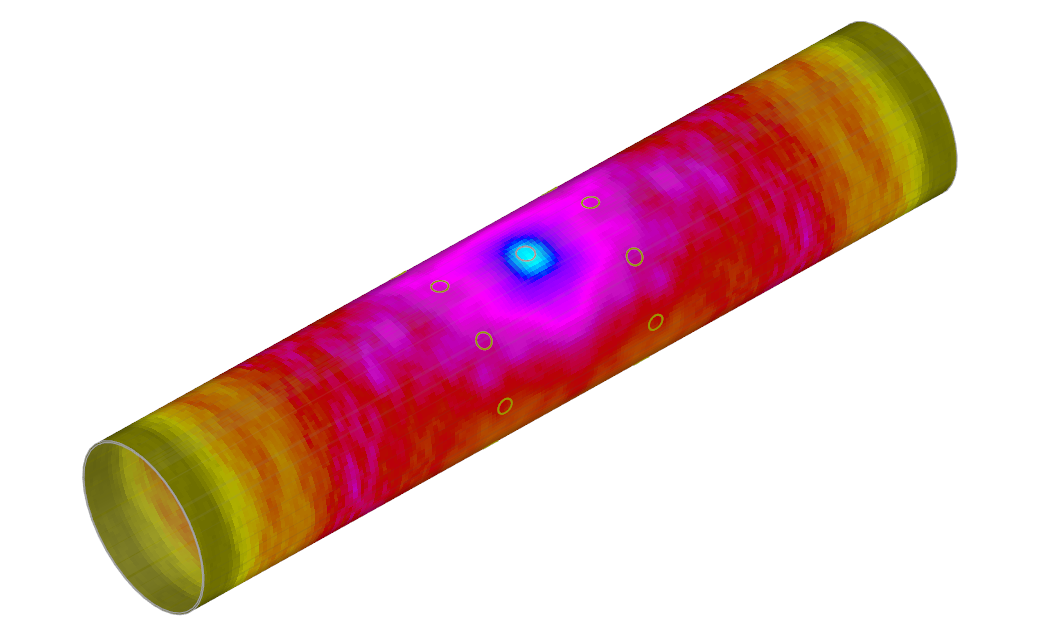

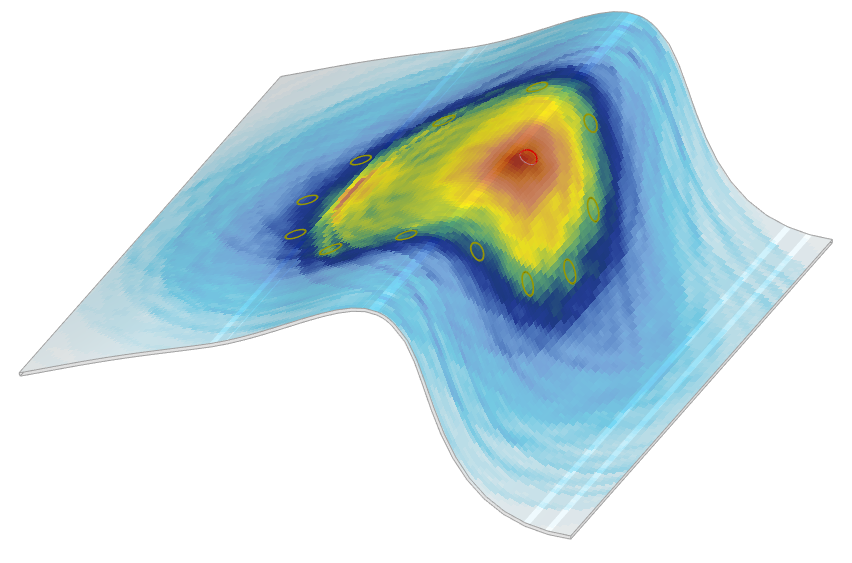

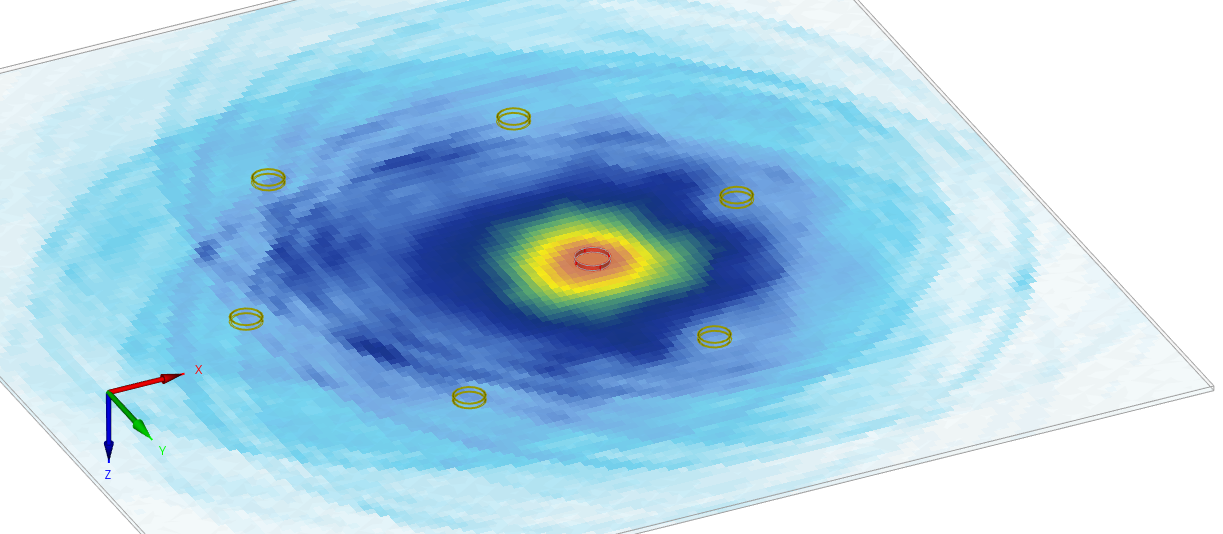

Simulation examples: SHM reconstruction imaging of defect signals for different structure geometries



Specimens

The following parametric geometries are available in CIVA SHM:

  • Metallic or composite plate, possibly multi layers

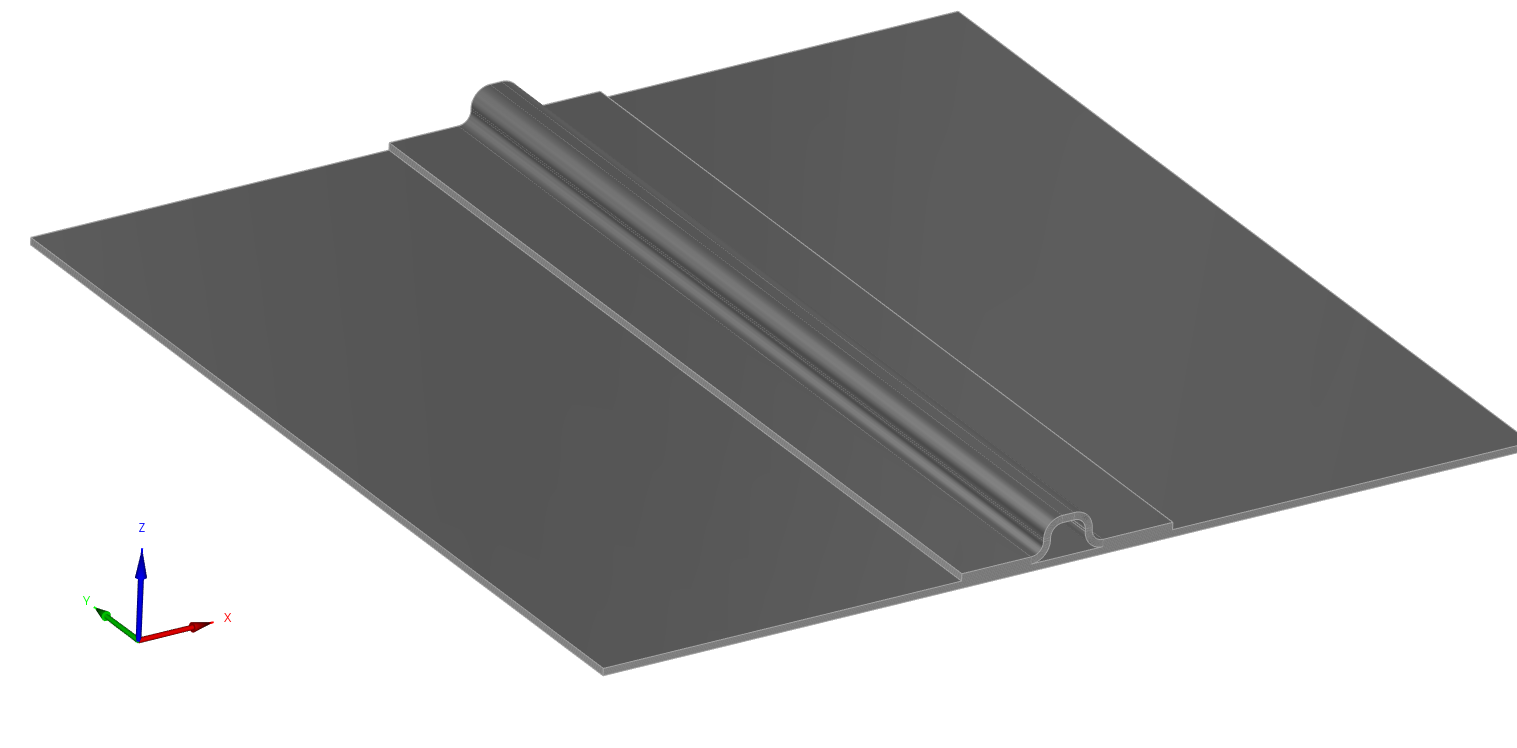

  • Stiffener

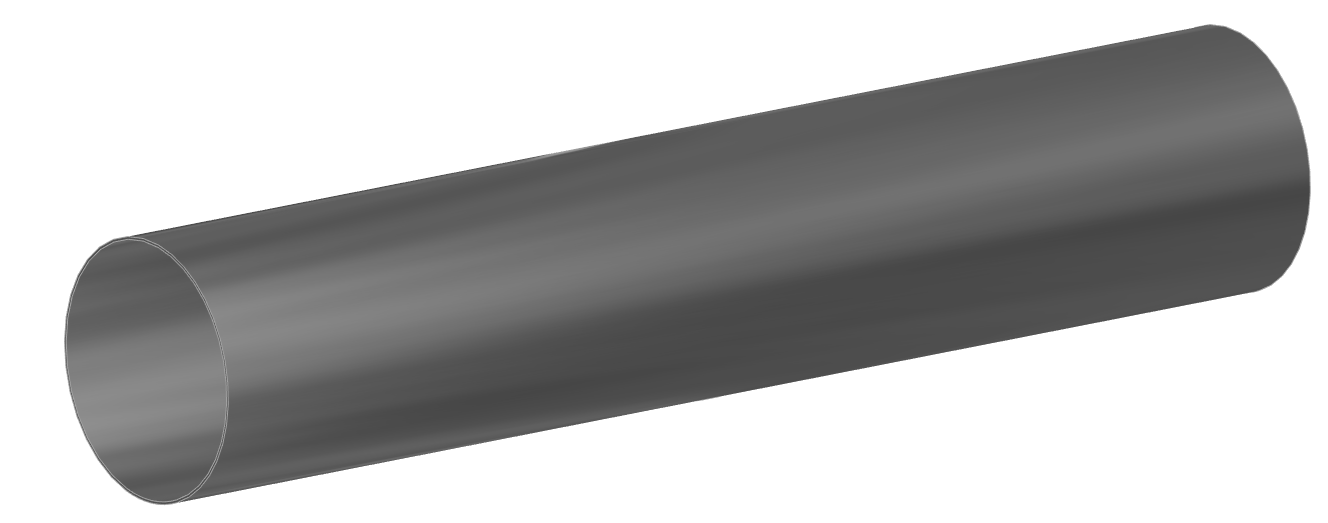

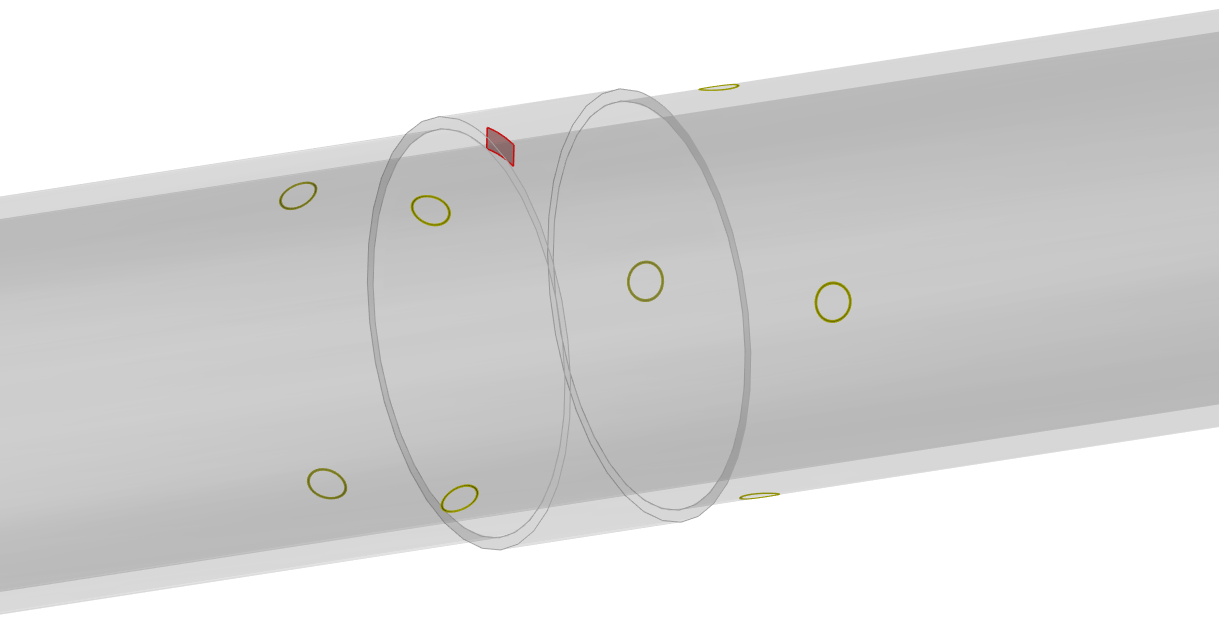

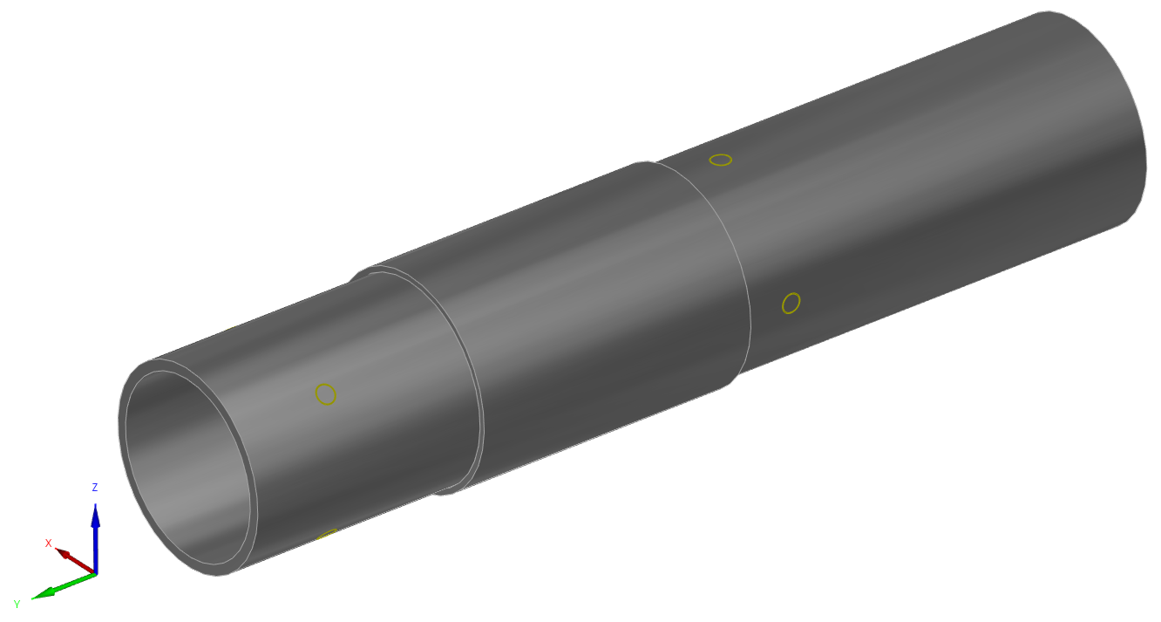

  • Cylindrical geometries

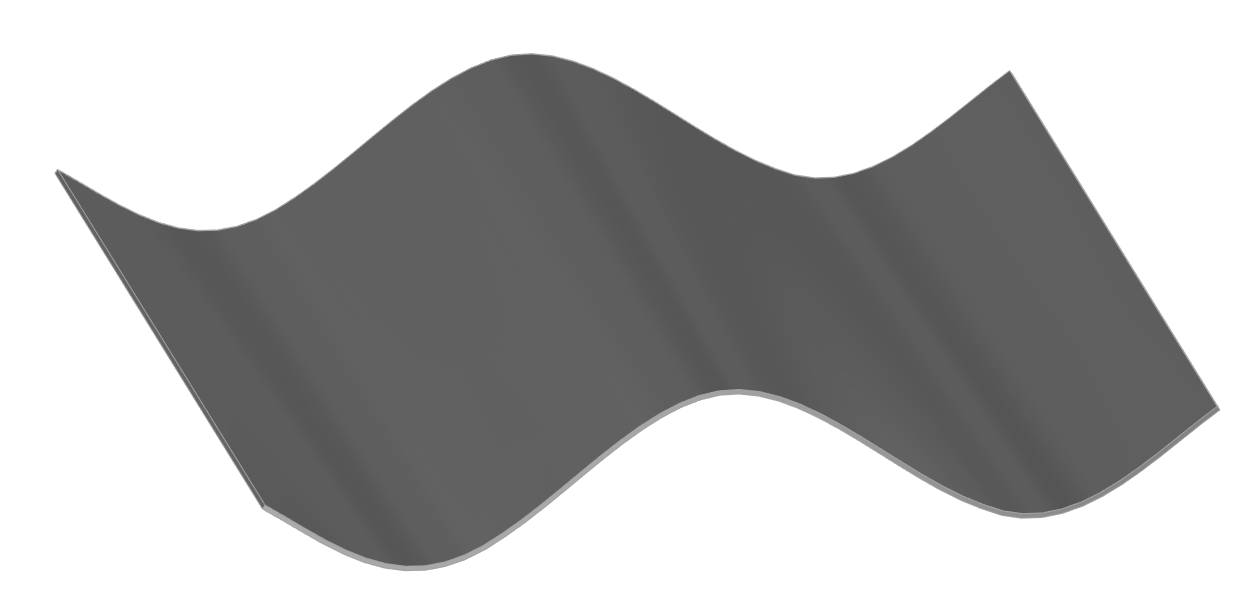

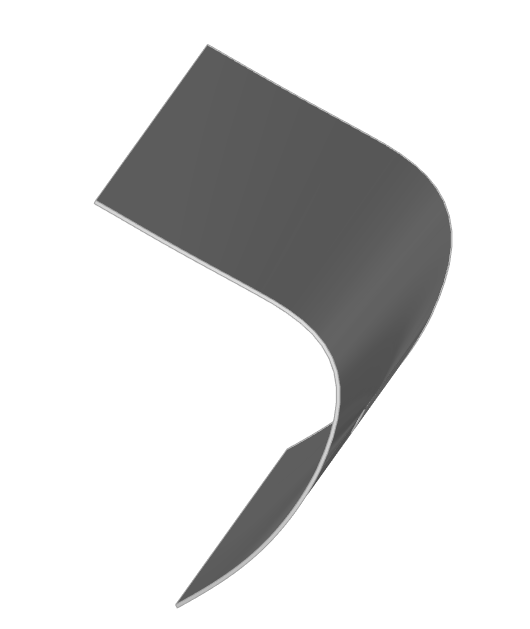

  • Curved and deformed profiles

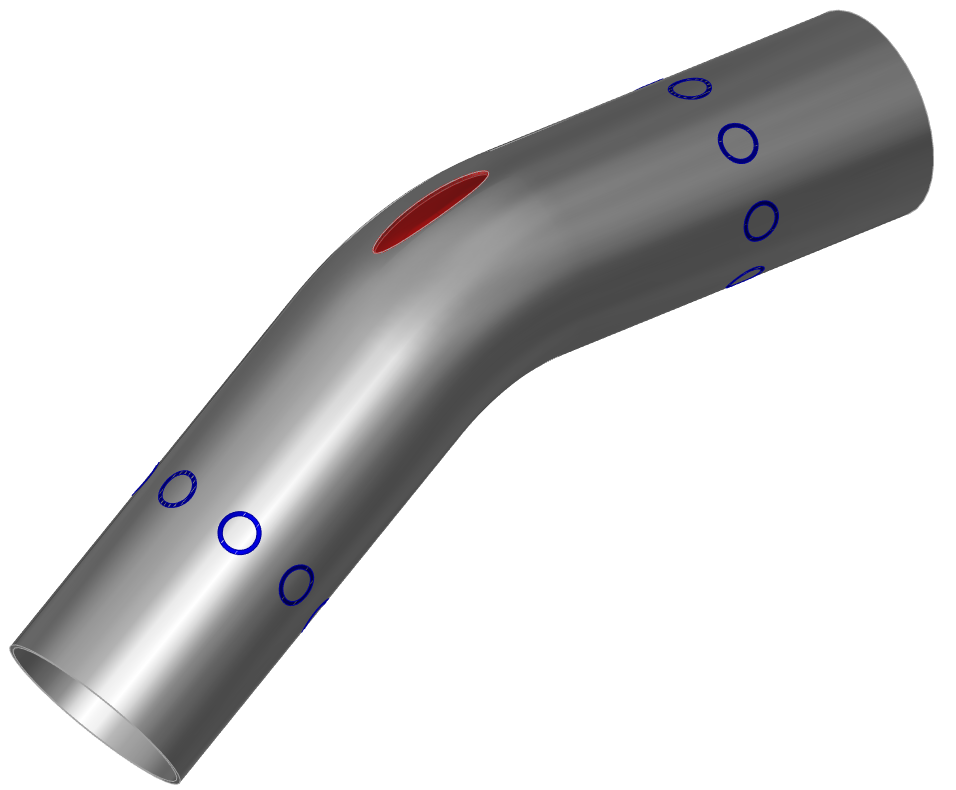

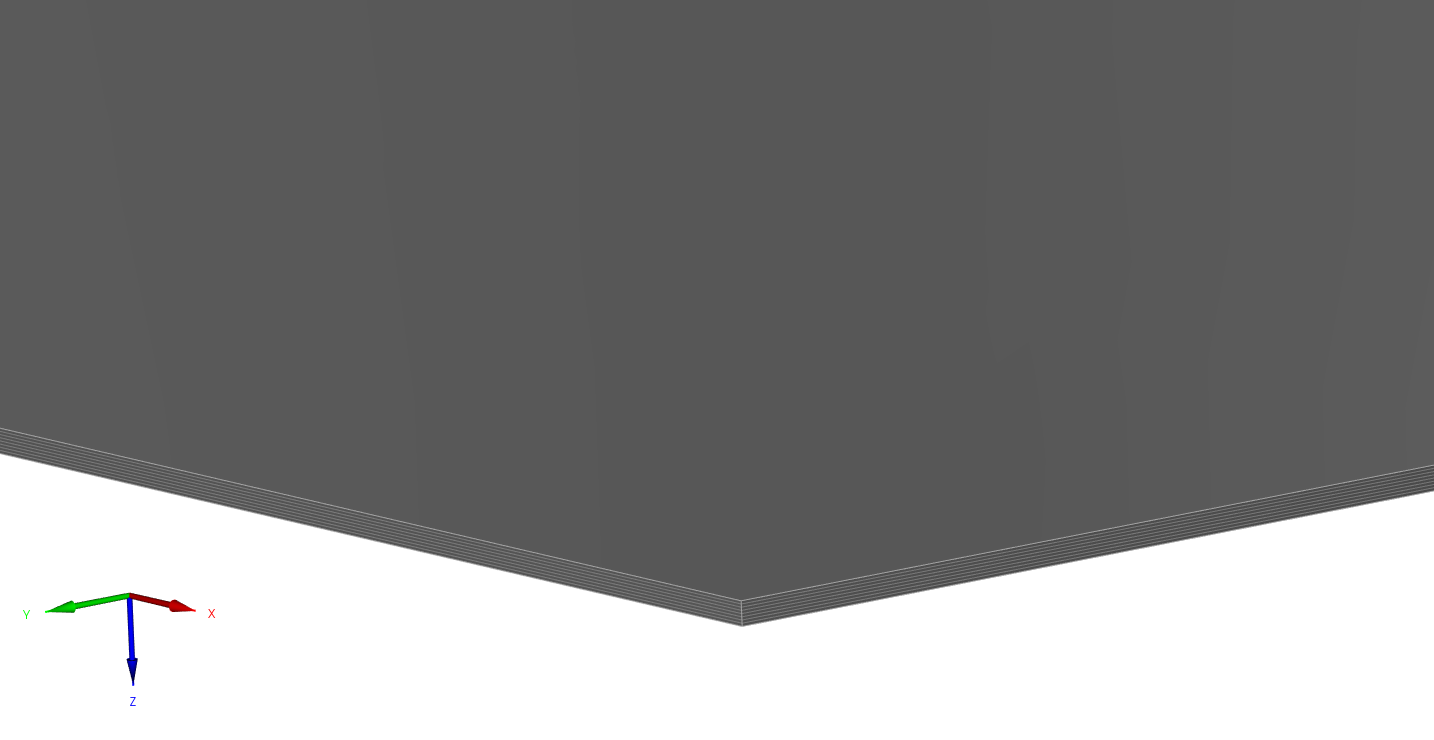

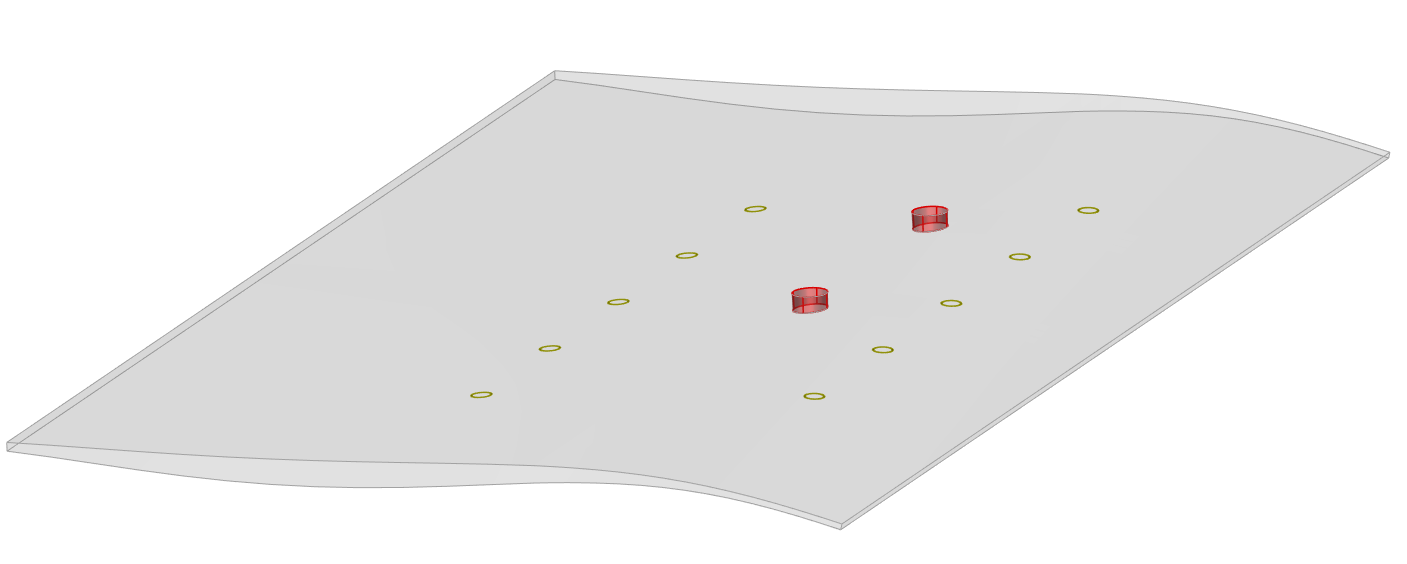

Examples of geometries considered in CIVA SHM

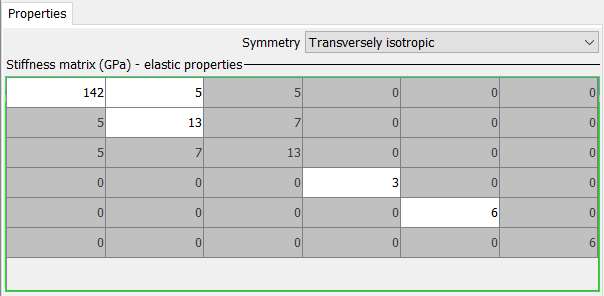

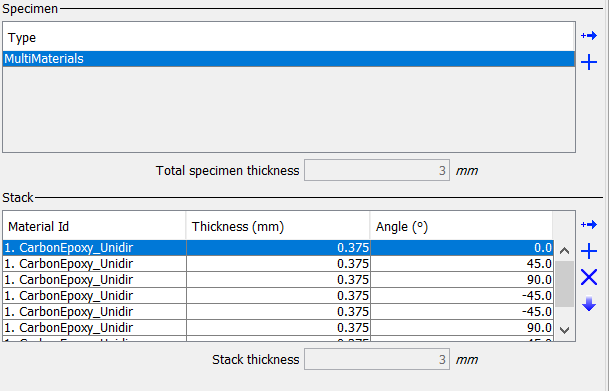

An isotropic material can be defined for all types of specimen by providing numeric values for its density and bulk waves velocities. In a planar or curved component, users can also consider an anisotropic material with an orthotropic or a transversely isotropic crystal symmetry such as in a fiber composite ply, through the definition of the stiffness matrix.



Multilayer anisotropic material definition in CIVA SHM



Flaws

Several defects can be simulated in a SHM model. The types of available defects are the following:

  • Delamination (with elliptical or rectangular profiles), holes and crack connected to a hole in stratified planar or curved components

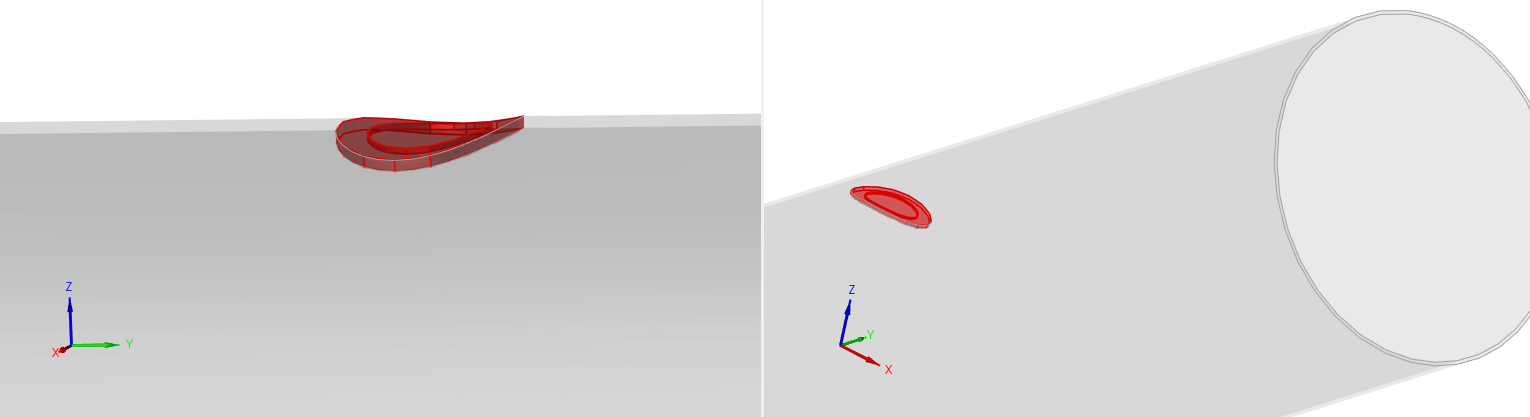

  • Erosion / Corrosion / Bump profiles as well as holes and crack connected to a hole in homogeneous isotropic planar, curved, or cylindrical components



Types of defects available in CIVA SHM for different specimen geometries:

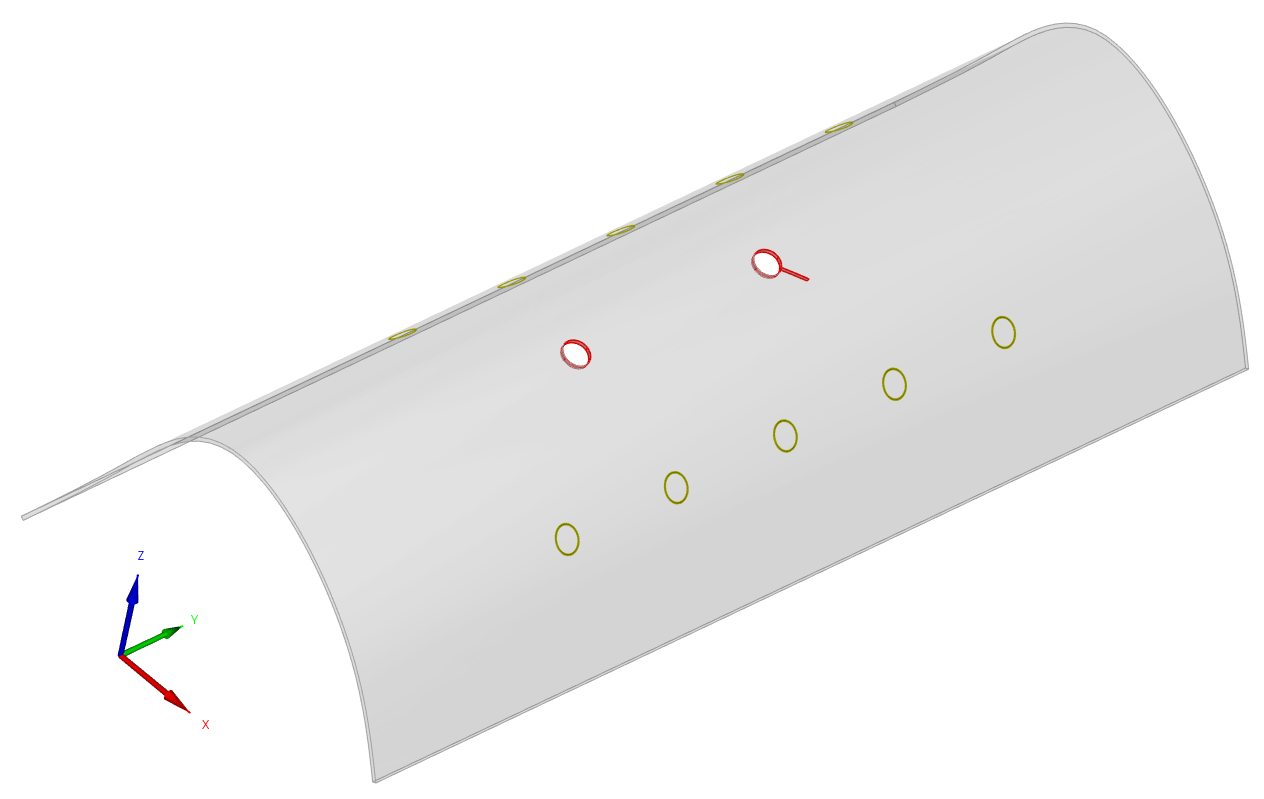

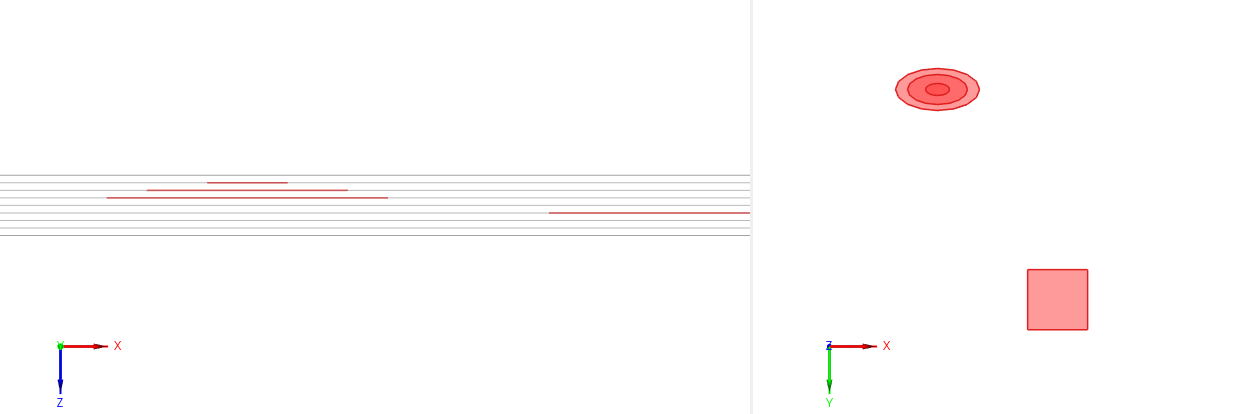

delaminations, erosion-like profiles, holes, crack connected to a hole



Sensors

Sensors can have a thin circular shape such as typical piezo electric patches with two possible excitation modes:

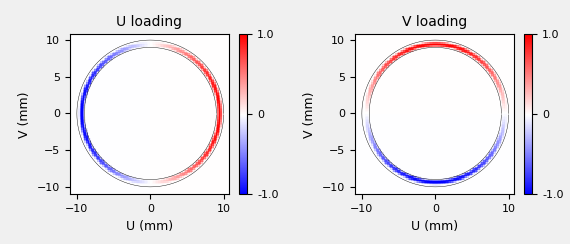

  • Radial loading: applied on the circumference of the piezoelectric disc (characteristic of low frequency sensors)

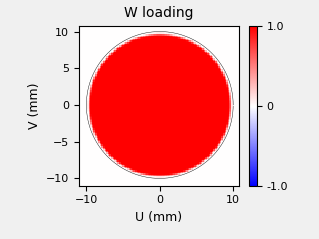

  • Normal loading: applied over the whole area of the piezoelectric (characteristic of high frequency sensors)

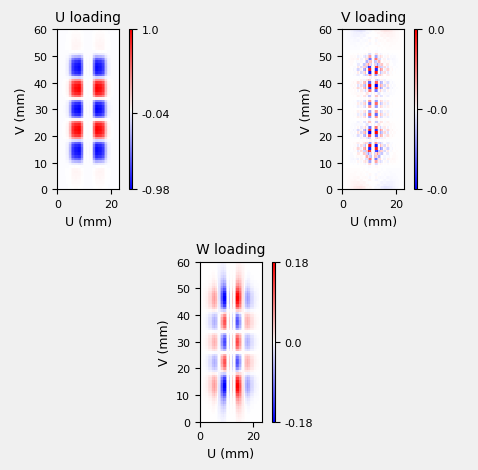

Custom sensor shapes and loading modes can also be entered by the user, to define an EMAT sensor for instance.

Example of different sensor shapes and excitation modes



An excitation waveform is associated to the sensor to model the pulse signal. It is based on the definition of the center frequency, the bandwidth or the number of bursts. Custom signals can also be loaded.

The sensors can be positioned along a circle, a grid or also in a custom way.

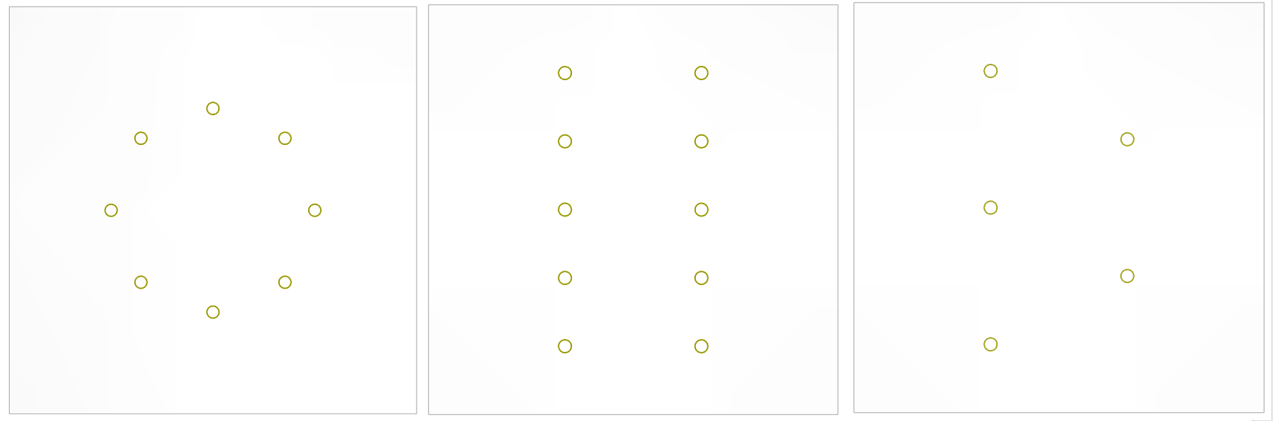

Example of sensors spatial distribution



They can operate in Round Robin mode (all sensors successively used as transmitters while the others receive) or in custom scan mode.



Results

SHM Simulation

The SHM simulation module uses an optimized FEM technique, the so-called "Spectral Finite Element Model". It relies on high-order Finite Elements built from a macro-element parametric decomposition meshing strategy. CIVA SHM by Guided Waves is fully parallelized and shows very competitive performances, with much faster computation times than traditional Finite Element software (generally higher than a factor 100!), and very low requirement in terms of RAM such that this module can run on very classical computers. Based on parametric geometries, CIVA SHM automates the mesh generation and thus does not require any specific FEM skills from the user. A panel informs the user on the performed automatic mesh, which can be adjusted through one accuracy parameter.

CIVA SHM will compute the signals received on each sensor and for each firing sequence. Symmetric and antisymmetric modes can be separated. From these results, an imaging reconstruction algorithm ("Delay and Sum") is available to process them and give an image of the defect impact displayed on the specimen 3D view and for different potential reconstruction modes or velocities.

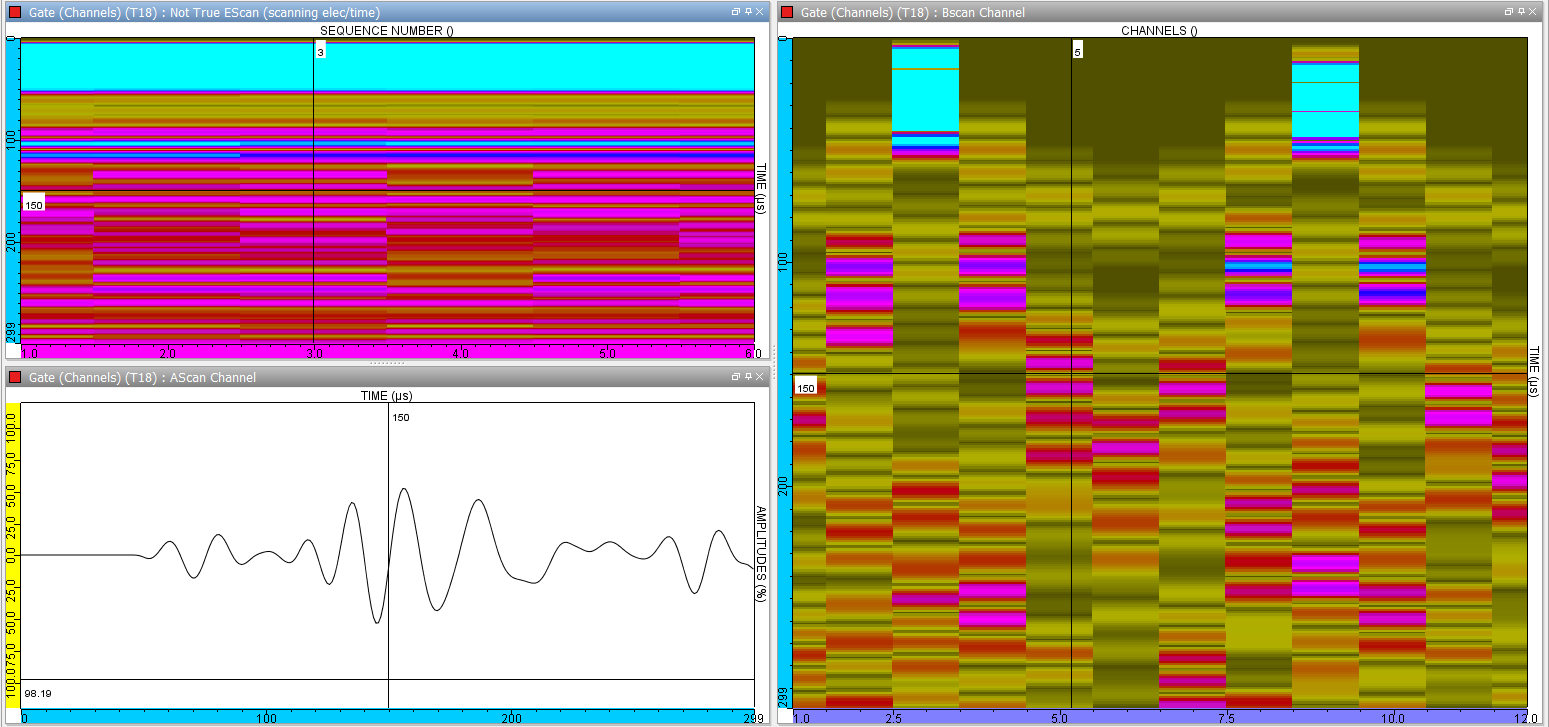

CIVA SHM Simulation results:  raw Ultrasonic data

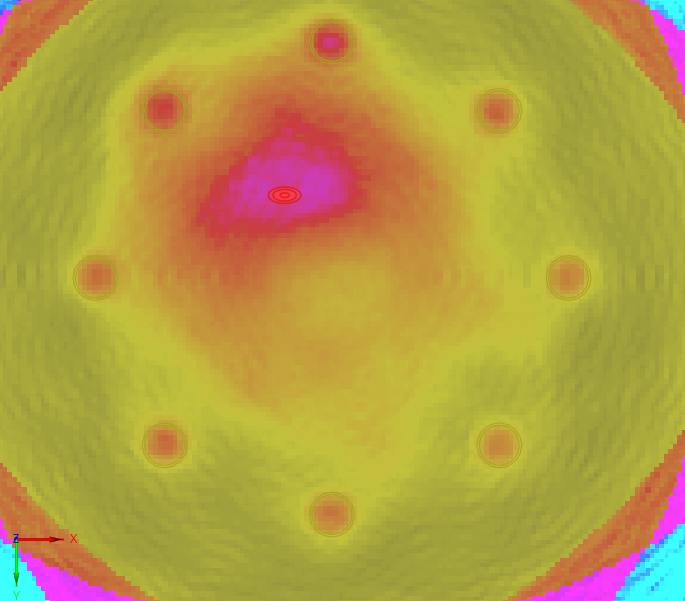

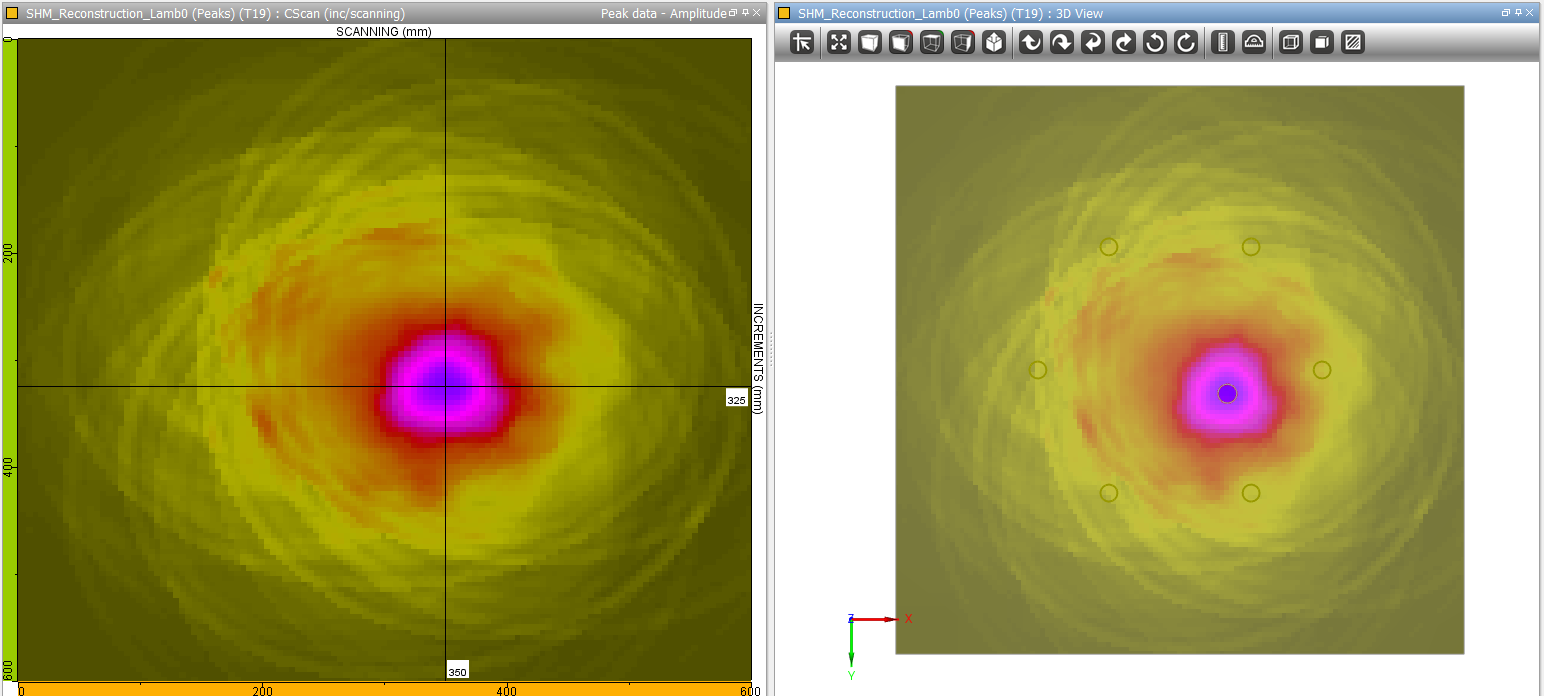

CIVA SHM Simulation results: reconstruction images using "Delay and Sum" algorithm



Local fields of displacement and stress can be extracted in *.txt files for various measurement points defined by the user. A *.vtk export enables visualizing snapshots of Guided Wave propagation and mesh information in a VTK viewer such as the freeware Paraview.

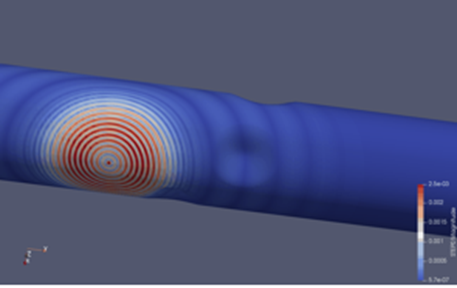

Ultrasonic field snapshot visualization in a VTK viewer



Modes computation

Based on a hybrid so-called "SAFE" method (Semi-Analytical Finite Element), CIVA SHM includes a mode computation tool which simulates the dispersion curves associated to the specimen in a given frequency range. Modal displacements and constraints are also computed. This module is similar to the one available in CIVA GWT.

Planar stratified and cylindrical geometries as well as 2D CAD section waveguide can be defined. Isotropic or anisotropic materials can be considered in this module. In the case of an anisotropic material, in-plane polar representation of dispersion curves is available.

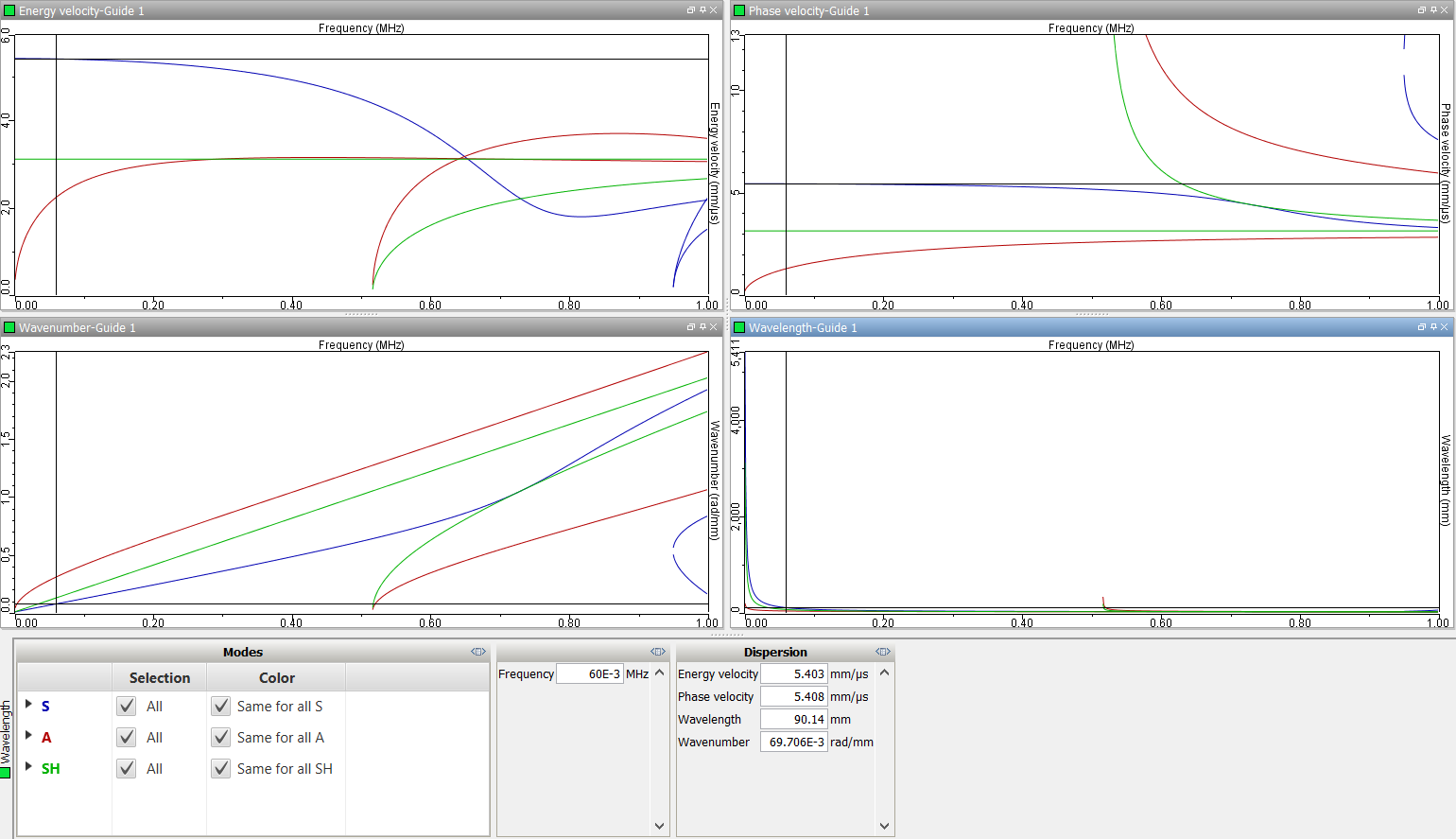

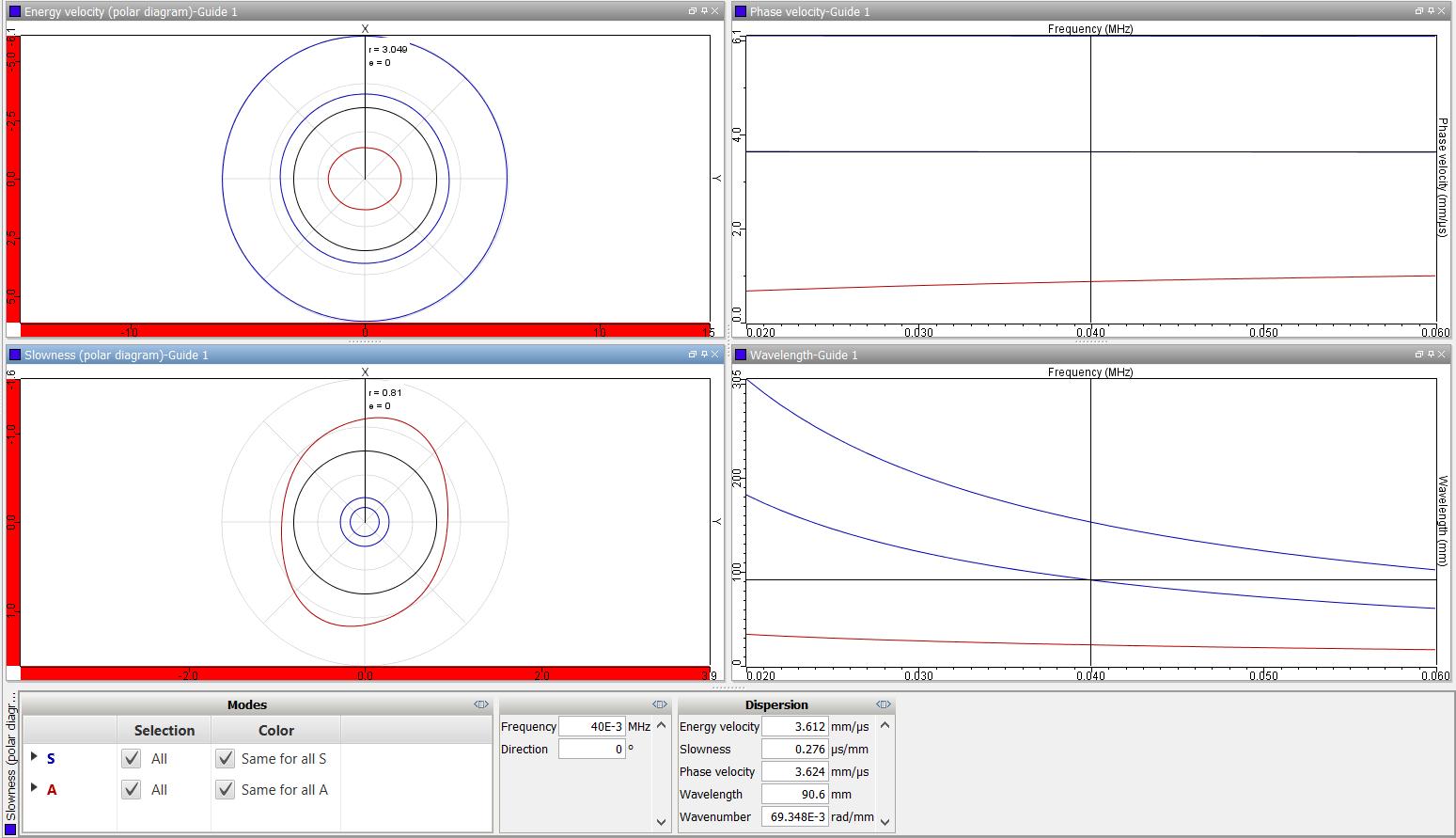

Dispersion curves in CIVA SHM
